1. Galvanized wires are widely used as tie wire or binding wire for packaging or supporting wire; The most common binding wire for construction uses is gauge 22 & gauge 21 wire. It features good flexibility and affordable cost.
2. Making ropes, springs, nets, electrodes, nails, transmission cables, handcrafts;
3. Manufacturing wire mesh, fencing, wire mesh screen, highway guardrail, netting, etc.
Wire gauge size | SWG(mm) | BWG(mm) | Metric(mm) |
8 | 4.06 | 4.19 | 4.00 |
9 | 3.66 | 3.76 | – |
10 | 3.25 | 3.40 | 3.50 |
11 | 2.95 | 3.05 | 3.00 |
12 | 2.64 | 2.77 | 2.80 |
13 | 2.34 | 2.41 | 2.50 |
14 | 2.03 | 2.11 | – |
15 | 1.83 | 1.83 | 1.80 |
16 | 1.63 | 1.65 | 1.65 |
17 | 1.42 | 1.47 | 1.40 |
18 | 1.22 | 1.25 | 1.20 |
19 | 1.02 | 1.07 | 1.00 |
20 | 0.91 | 0.89 | 0.90 |
21 | 0.81 | 0.813 | 0.80 |
22 | 0.71 | 0.711 | 0.70 |

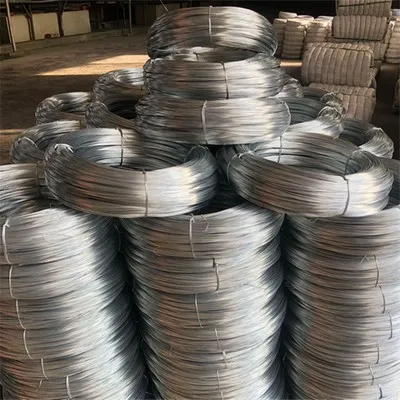

Item | Hot Dipped Galvanized Wire |
Material | Low carbon steel (Q195, Q235) |
Zinc Coating | 40 – 350 g/m2 or can be customized |
Wire Diameter | 0.5 mm – 5.0 mm |
Tensile Strength | 350 – 550 N/mm2 |
MOQ | 5 tons |
Packaging | 1kg – 1,000 kg in coil or can be customized |
Sample | Available |
Features | Excellent corrosion resistance, bright and silver surface, high tensile strength, etc. |
Packaging | Inner plastic and outer woven bag packaging |
