1, First, galvanized steel baseplate and aluminized zinc silicon baseplate will go through surface pretreatment (degreasing)
2, Then the plate with be coated with a layer or layers of liquid coating through roll coating method
3, In the end, the plate will go through roasting and cooling processes.
Usually coated plate is called color-coated steel plate, because its surface can be coated in different colors. When organic coating is coated on surface of hot-galvanized steel plate and hot aluminized zinc silicon plate, we will get color hot-galvanized steel plate and color hot-aluminized zinc silicon plate. Coated plate has the property of zinc-protecting, isolating and anti-rusting, which makes its service life longer than hot-galvanized plate.
PPGI & PPGL Advantages
The coating of the color-coated steel sheet not only protects but also increases the decoration, and the color is durable and not easy to fade. The surface of different types of color-coated boards can also be embossed and printed with different types of colors and surface structures.
Color-coated steel sheet also has a very advantageous advantage in terms of architecture and interior decoration, which can play a role in fire prevention. The coating surface can maintain gloss even under high temperature baking, and there is no change in surface color.
In terms of processing, the surface coating of high-quality color-coated steel sheets does not fall off after bending or stamping, and the coating quality is far more uniform, more stable, and more ideal than single-body spraying on the formed metal surface.
In terms of use time, the color-coated steel sheet is obviously more durable than the traditional steel sheet, and it can maintain gloss and rust for more than 20-30 years indoors.
Specification and Production Capacity
Product | PPGI & PPGL Steel |
Types | Sheets / Coils / Corrugated |
Substrate | Galvanized Steel / Galvalume Steel |
Zn/AZ Coating | Z30~275, AZ30~150 |
Thickness | 0.18-1.2mm |
Width | 900~1250 mm |
Coil ID | 508/610 mm |
Coating Types | PE, SMP, HDP, PVDF |
Package | Standard export package or customized |
Annual Capacity | 400,000 T/Year |
Standard SPECIFICATIONS
Substrate | Standard | Uses and Characteristics |
Galvanized Steel | DC51D+Z | General use |
DC52D+Z | For stamping | |
DC53D+Z | For deep drawing | |
S280GD+Z | For structure | |
S350GD+Z | For structure | |
S550GD+Z | For high-strength structures | |
Galvalume Steel | D51D+AZ | General use |
D52D+AZ | For stamping | |
S250GD+AZ | For structure | |
S300GD+AZ | For structure | |
S350GD+AZ | For structure | |
S550GD+AZ | For high-strength structures |

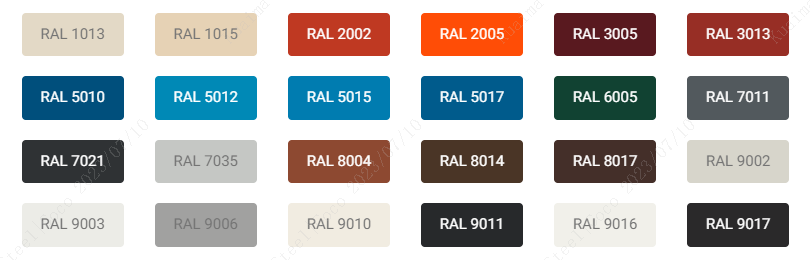

Common RAL Colors
According to the usual color requirements of our customers, there are some common common colors.
Also, you can choose the exact color you want from our RAL Color Chart.
Coating Types
Coating Types | Characteristic |
PE Coating | Color plate coating with excellent processability and weather resistance |
HDP High Weather Resistance Polyester Coating | Weather resistance second to fluorocarbon paint, weather resistance for more than 10-15 years |
SMP Silicone Modified High Weatherability Polyester Paint | Second only to aging of fluorocarbon topcoat, 15 years guarantee |
PVDF Fluorocarbon Coating | Ultra-high weather resistance, conventional guarantee for 20 years |
Surface Type
